LIMITED PREORDER OF 100 UNITS SHIPPING IN Q1 2025

engineering sample pictured, production finish will be finer quality

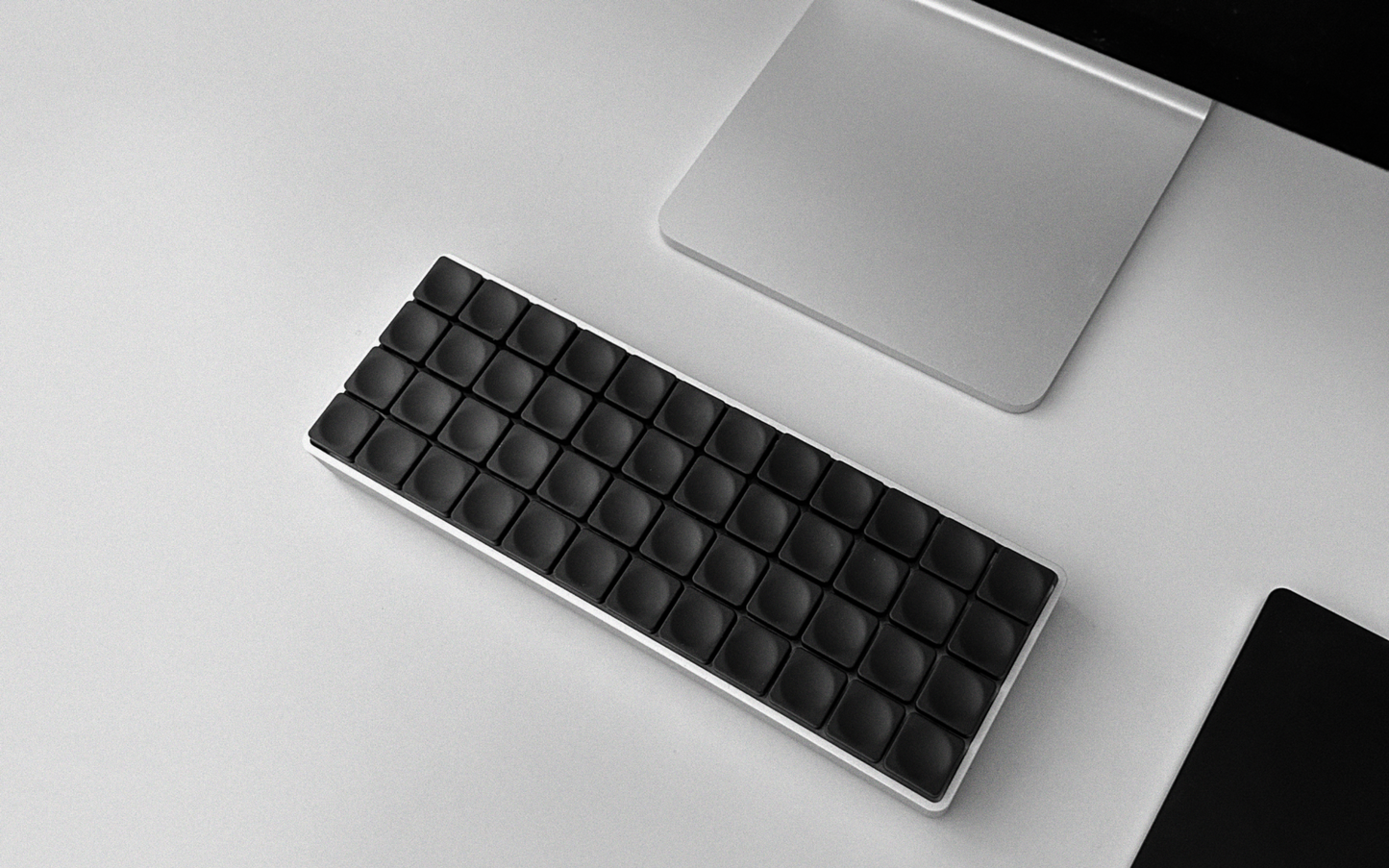

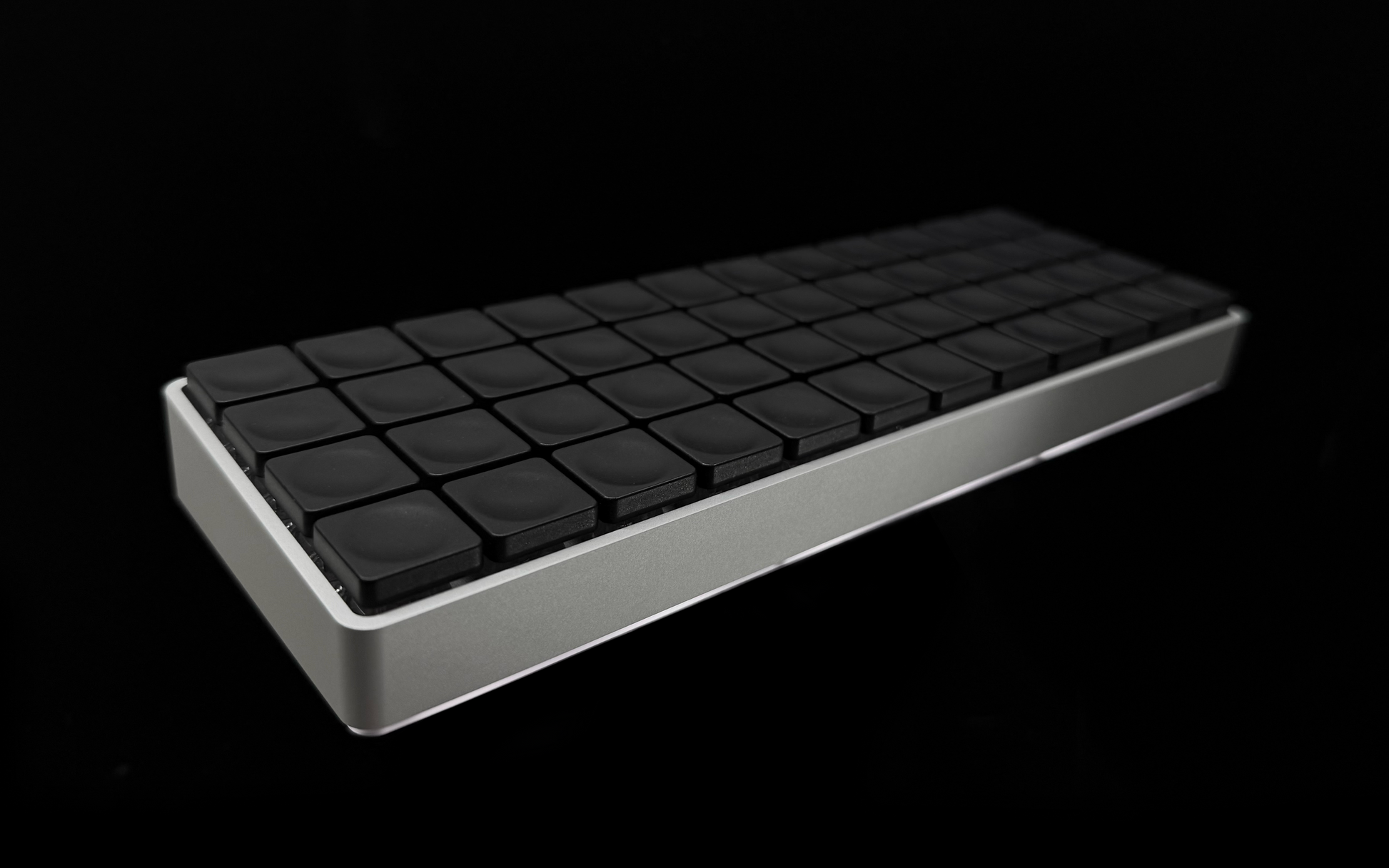

this is ALU40, the first ever wireless true ortholinear mechanical keyboard designed by huibenLAB in collaboration with polarity works to complement apple devices. at 24-28mm tall with exclusive work louder mx keycaps, it's also the slimmest ever keyboard with full height mx switches while still fitting a large 1800mah battery originally designed for iphone for months of uninterrupted use. the bead blasted finish, typing angle, and other details perfectly match peripherals such as magic trackpad and studio display. the pcb is suspended on a plate mount enclosure machined from a single block of aluminum, with a subtle rgb backlit transparent bottom edge. hand assembled by me and shipped from brooklyn ny.

ec11 rotary encoder available here

FEATURES

- wireless bluetooth low energy connectivity for up to 5 devices with fast switching via configurable keys with a ~2m range

- kailh mx hot swap sockets

- ec11 rotary encoder knob in any one corner with two directions and button press

- super slim total height from 24-28mm to the top keycaps and 19-23mm to the top of the high profile case

- single piece bead blasted anodized aerospace aluminum enclosure with plate

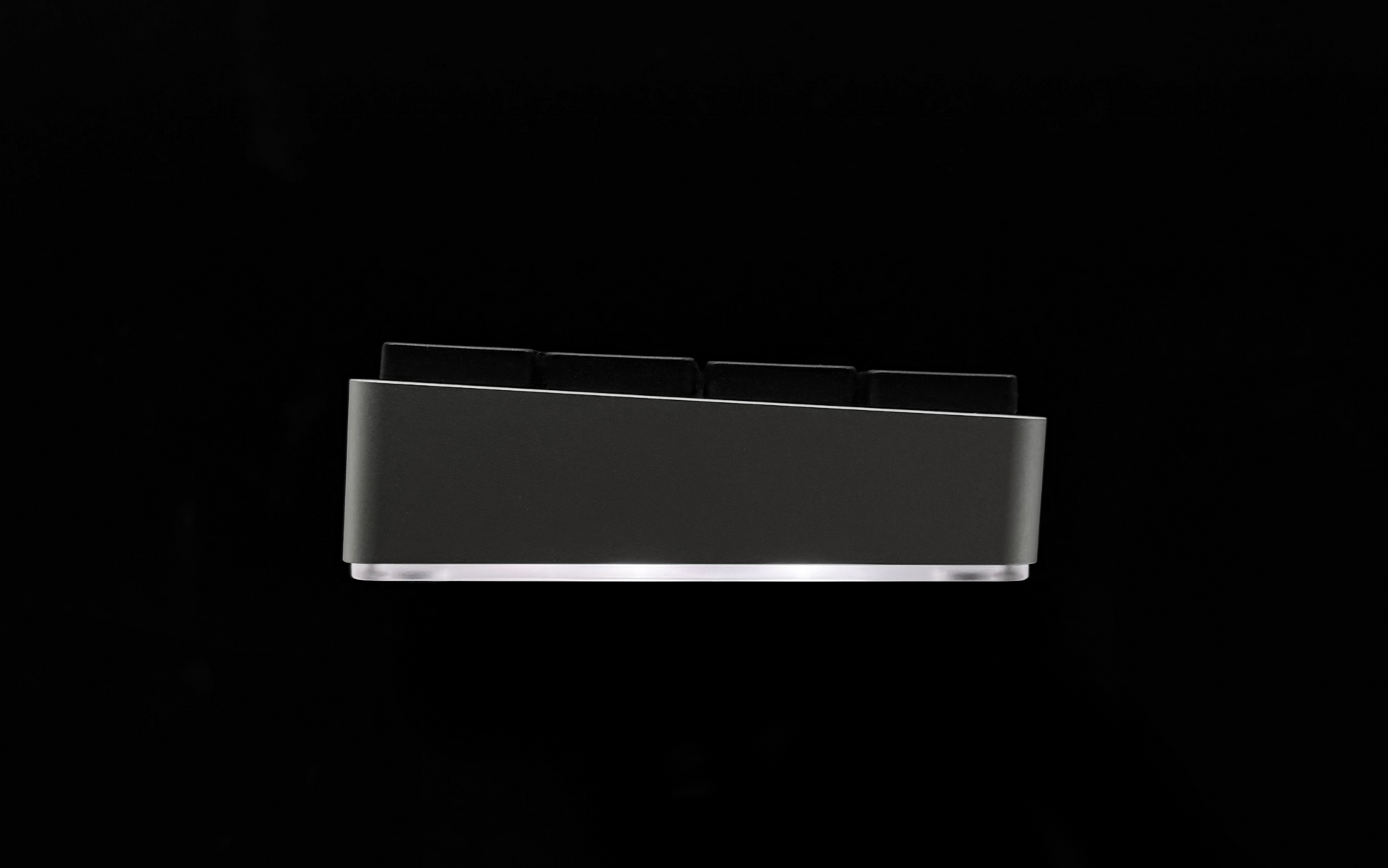

- transparent underside with rgb lighting (recommended only in wired use)

- optional exclusive work louder mx matte keycaps

- iphone specced battery for months of use (rgb off)

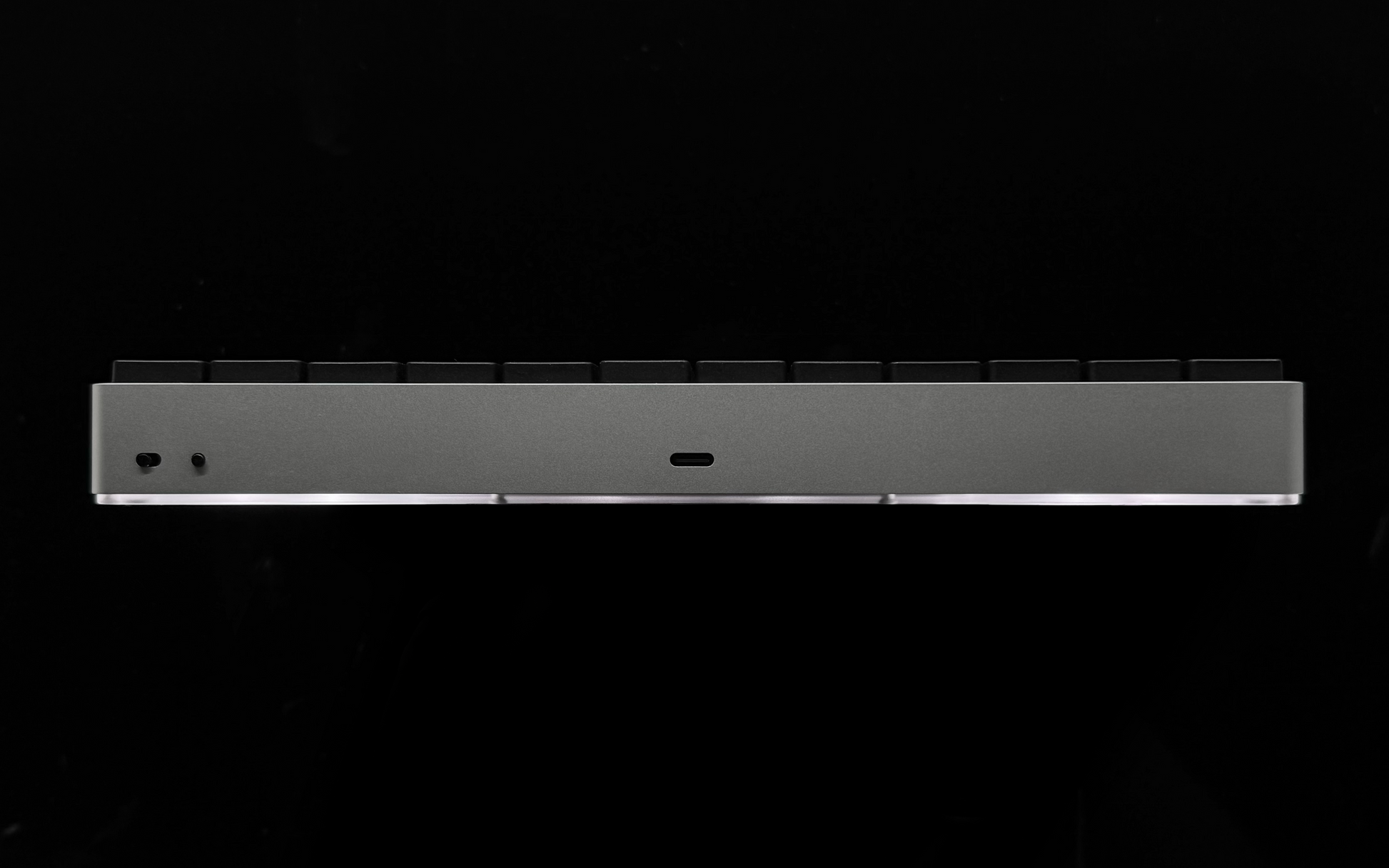

- fully recessed machined usb-c port

- 3° typing angle matches apple magic trackpad

- zmk firmware for simple keymap changes with online ui

- 1u, 1x 2u space, or 2x 2u space layouts supported

- mac, windows, linux, ios, and android supported

CONTENTS

- ALU40 wireless pcb

- 1800 mah battery

- bead blasted anodized aluminum enclosure with integrated plate

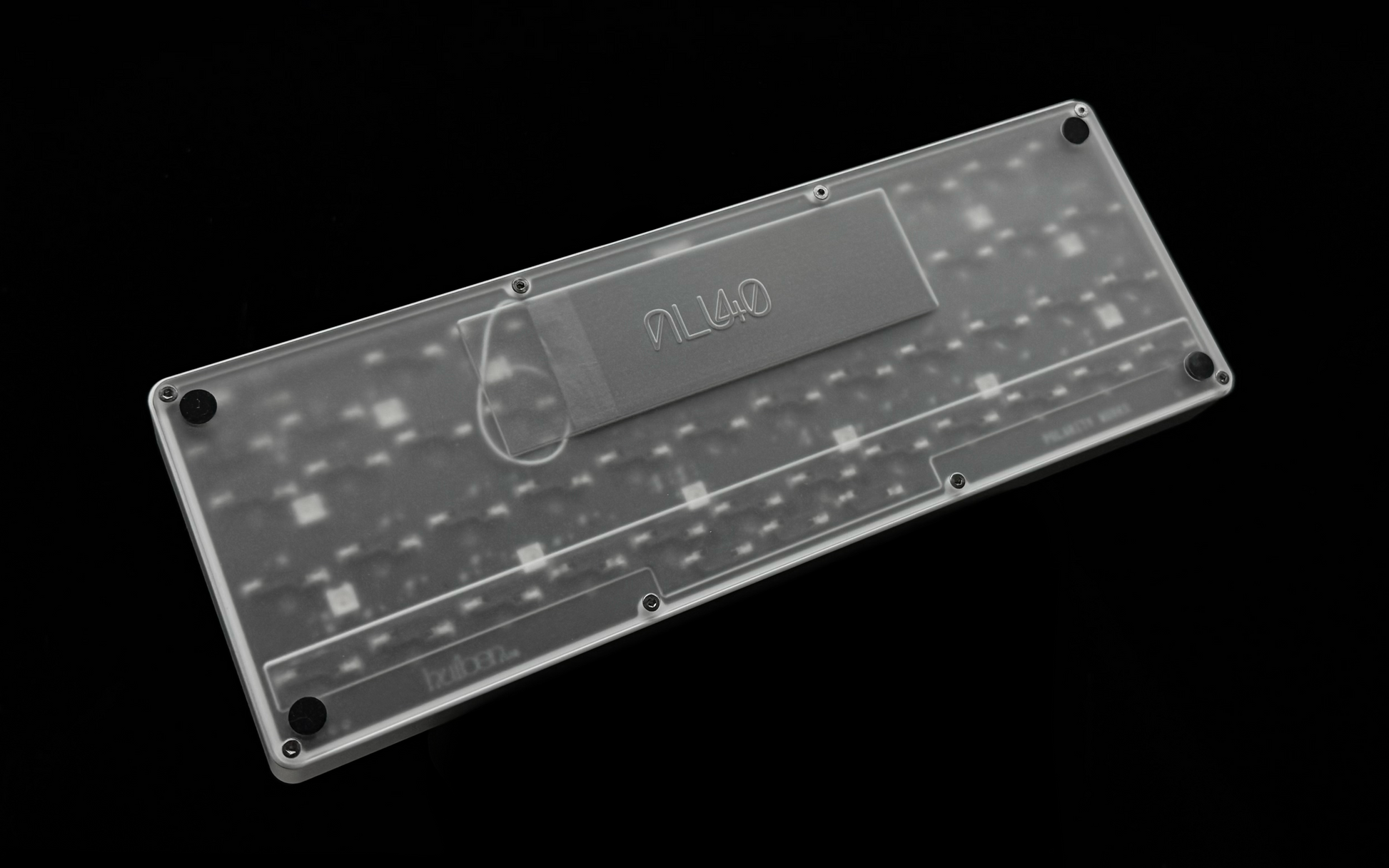

- bead blasted clear acrylic bottom with rubber feet

- bead blasted black anodized aluminum reset button

- bead blasted black anodized aluminum power switch

- 8 black steel enclosure screws

- optional work louder mx 48x 1u and 2x 2u keycaps

REQUIRED

- 48 switches

- 48 keycaps (work louder mx, doys, f10, or hibi blocks suggested, but all keycap profiles are compatible)

OPTIONAL

- ec11 rotary encoder available here and knob

- 2u spacebar stabilizer
